XPROG-box

News:

-------
2011.06.25 XPROG-box software update to version V5.3.5
-Introduced new Dashboard tool: micronas CDC32xx-24C32-Tool
This tool enables to read/write EEPROM data including all encrypted
blocks. All encrypted blocks automatically decrypted/encrypted when
execute read/write commands. So with this tool you can view and edit
all encrypted blocks and also easy transfer EEPROM data from one
dashboard to another.
-Added new dashboards support: 1K0920863B, 1K0920864B, 1K0920874B,
1T0920864A, 1T0920874A, 1Z0920812D, 1Z0920842D, 1Z0920842E, 1Z0920912D,
3C0920852S, 3C0920871D, 8J0920930E, 8P0920931B.
-Added new MCU`s support: MC9S12XHZ256, MC9S12XHZ384, MC9S12XHZ512.
-Some small bugs fixed.
-------
2011.05.31 XPROG-box software update to version V5.3.4
-Added XC68HC708AZ60(8H62A) support.
-Certificate update (on some PC) bug fixed.
-------
2011.05.18 XPROG-box software update to version V5.3.3
-Hardware registration (on some PC) bug fixed.
-------
2011.05.14 XPROG-box software update to version V5.3.2
-HC05 write error (on some third-party hardware) bug fixed.
-communication via COM port bug fixed.
-------
2011.04.02 XPROG-box software update to version V5.3.0
2011.03.11 XPROG firmware update to version V1.5.
2011.03.02 XPROG bootloader update to version V1.4.
2011.02.28 Bypass security adapter ADP-0017 firmware update.
Now ADP-0017 support devices with 4MHz and 8MHz sys. clock.
2011.02.22 Added MC9S12XDT384 bypass security.
2011.02.18 Added MC9S12XDT384 Read/Write FLASH, EEPROM.

XPROG-box available in the ELDB electronis store

1. Introduction

The XPROG-box project is a continuation of the project XPROG and now supports more than 450 units (serial EEPROM`s, Microcontrollers (MCU), Electronics Control Units (ECU), DashBoards, Immobilizers, Calculators and others). Each XPROG-box has a unique 16-byte hardware ID that helps identify your XPROG and solve the potential problems.
Third party XPROG hardware (various clones, xprog, xprog-m, ...) users can also use the XPROG-box software and firmware if their XPROG hardware registered.
How to register XPROG hardware, you can find here.

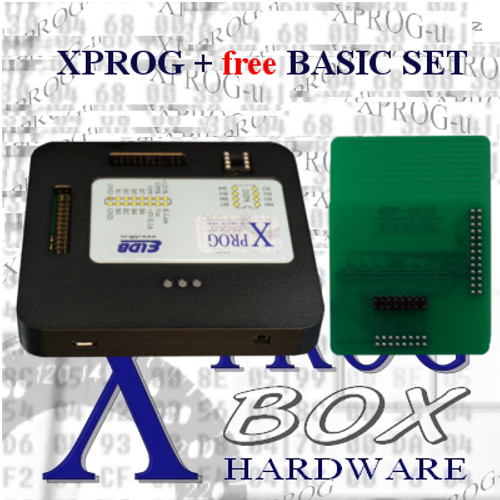

2. XPROG-box package contents

1. Registered XPROG-box hardware, with a unique hardware ID.
2. CD with XPROG-box software. (Each new version is available for free download for
registered XPROG-box hardware users).
3. Base software authorizations and programming adapters set.
4. USB Cable.

3. Requirements for PC

Processor:	INTEL Pentium 60MHz or faster (depends on operating system)
Memory (RAM)	64MB (depends on operating system)
Hard drive:	20MB free space
Communication:	One free physical COM or USB port
Operating system:	Microsoft Windows NT/ME/2000/XP/VISTA/WIN7
	Internet connection
