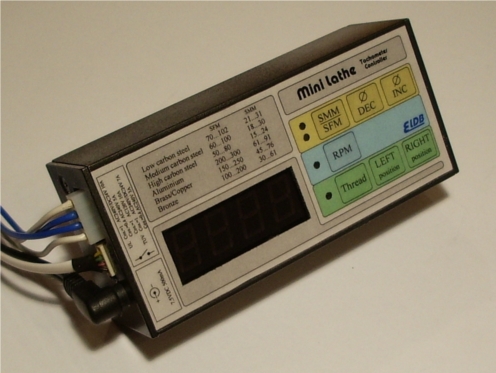

Information

 Features

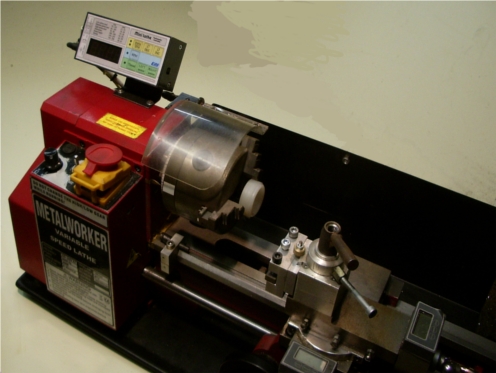

    Compatibility: 7x10, 7x12, 7x14, Sieg C2/C3, Real Bull or similar mini lathe
    Enclosure: Aluminum
    Display: Large 14mm (0.56"), bright LED display
    Work diameter: 0.1 to 799.9mm (0.01 to 31.50 in.)
    Calculate surface feed per minute (SFM): 0 to 9999
    Calculate surface meters per minute (SMM): 0 to 9999

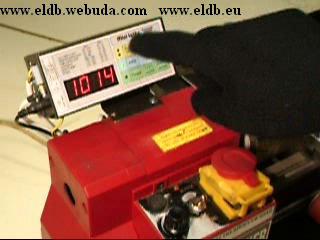

    Measure RMP (spindle speed readout): 50 to 9999

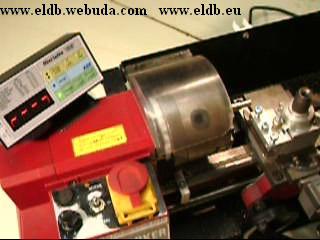

    Screw cutting control: automaticaly stops lathe at the ends of thread (electronic                                              carriage stop).  Dont need sensitive manual stop.
    Carriage control: electronic carriage stop feature.


 Specifications

    Operating temperature: +5 to +35degrees C
    Storage temperature: -40 to +85 degrees C
    Relative humidity: 0 to 90% (non-condensing)
    Power requirements: +6.5 to +12Vdc @ 0.35A (max)
    Dimensions L x H x D: 132 x  60 x 40 mm (5.2 x 2.37 x 1.58 in.)
    Weight: 250g (8.82oz.)
    Motor switches:    UL -      Cos.=1 AC240/DC24V 10A
                                                Cos.=0.4 AC240V 5A
                                    TUV -  Cos.=1 AC120V 10A
                                                Cos.=1 AC240V/DC24V 7A
                                                Cos.=0.4 AC240V 3A

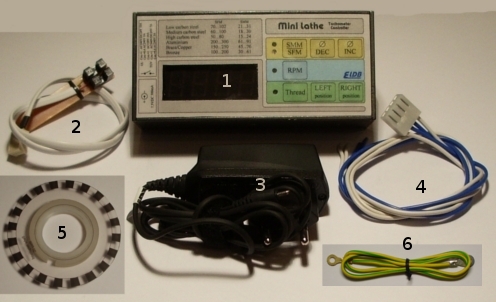

 Package contens



    1. Mini Lathe Tachometer - Controller.
    2. Optical sensor.
    3. Universal AC/DC 100...240V adapter.
    4. Cable with connector.

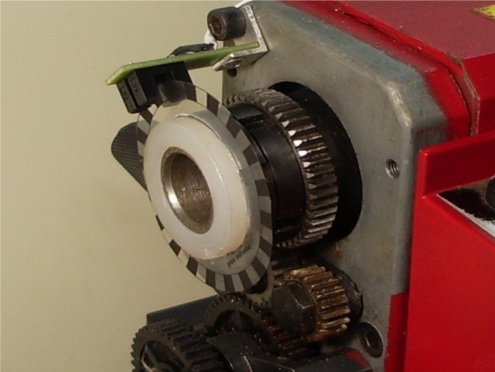

    5. Interrupter wheel. 20 teeth. M27 x 1.5
    6. PE cable

  Price:   €91.00.

  Payment method: PayPal.

  Shipping:  We ship to Worldwide and use registered prioritare Airmail.
                    Shipping price is €14.00.




User`s manual

   Download Mini Lathe Tachometer users manual


  Videos onYouTube:

FAQ updated 2010.08.18

Q: My mini-lathe controller has built-in an interlock that forces me to turn the speed control to zero to start the motor. When the direction is changed  (Forward/OFF/Reverse) I must turn the speed control  off/on to get the mini-lathe to start. What modifications should I do, to start the mini-lathe without moving the speed control.
A: Your mini-lathe potentiometer(speed control) with switch, which is interlocked with Forward/Off/Reverse switch. Contrary to common, the switch contacts are closed when the potentiometer in '0' position (lathe OFF, figure 1) and are opened when the potentiometer not in '0' position (lathe ON, figure 2).



  If you want to start lathe without moving the potentiometer, you must connect a push button (~250VAC 5Amps or more) as show in figure 3.
When you click on the button, mini lathe will start to operate.



Attention! use only push button. Not toggle button or switch.
